Nitrogen Inerting Vent with Electronic Supervision - PAV-WNS

Nitrogen Inerting Vent with Electronic Supervision - PAV-WNS

Please login to view pricing and to purchase online Or contact sales directly for pricing and purchase information

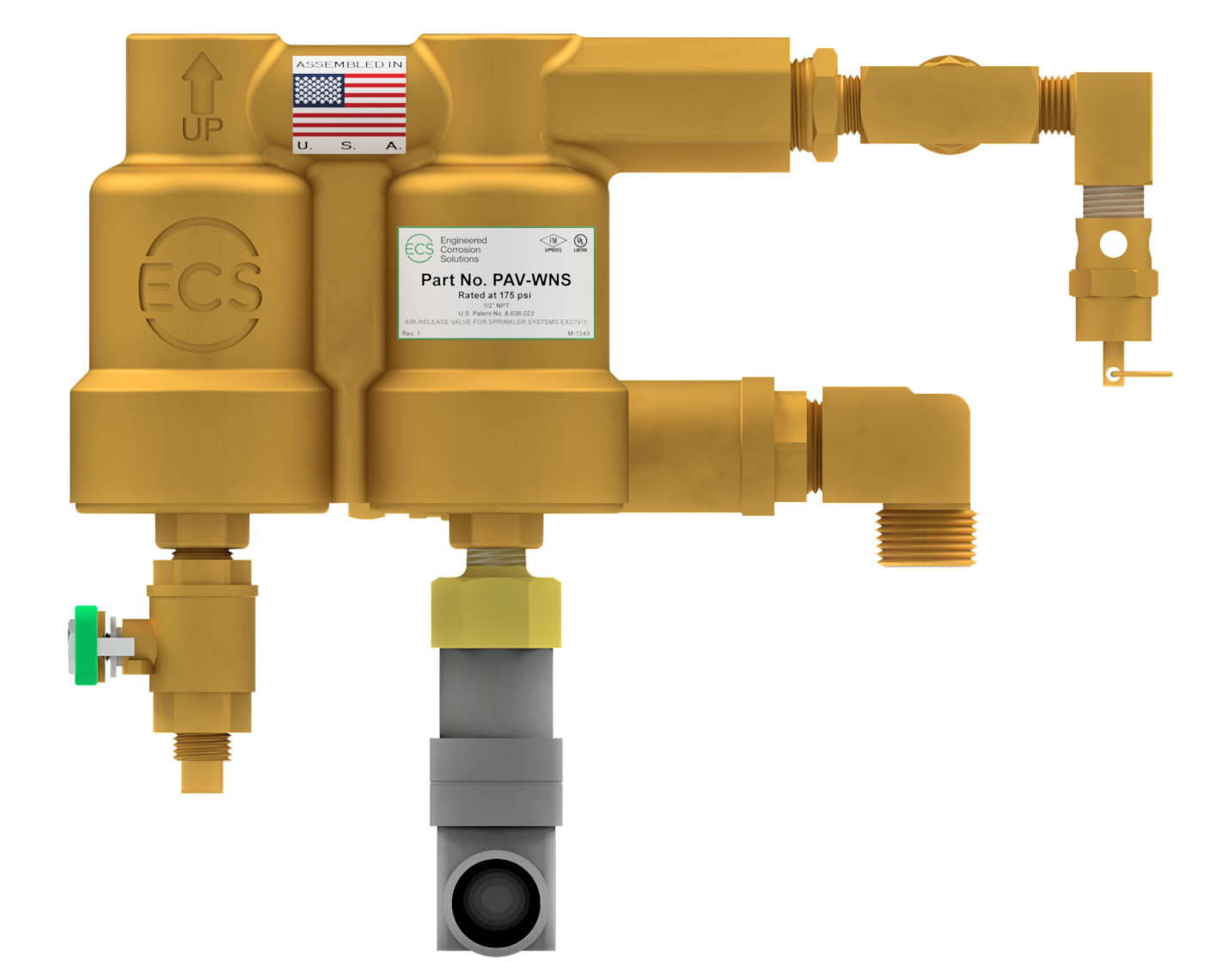

Redundant float air release valve for nitrogen inerting wet fire sprinkler systems. Automatically retains nitrogen while performing wet pipe nitrogen inerting process while allowing trapped air to escape the pipe network as the system is filled with water. Equipped with connections that can be monitored by a fire alarm system or building monitoring system to alert if the vent operation has been compromised. The PAV-WNS controls corrosion as part of the WPNI process by replacing trapped air with nitrogen.


  • FM Approved
  • No requirement to plumb to drain
  • Meets NFPA 13 2016 edition venting requirements
  • Electronic supervision
  • PNIP-1 nitrogen inerting port included (Nitrogen gas not supplied by ECS)


  • 12” (H) x 5” (D) x 9” (H)
  • 5” clear height from center line of connection
  • 12 lbs
  • 1” NPT connection
  • O. monitoring contacts

Additional equipment needed to complete the Wet Pipe Nitrogen Inerting Process:
