How do you improve something that’s already the best in the industry?

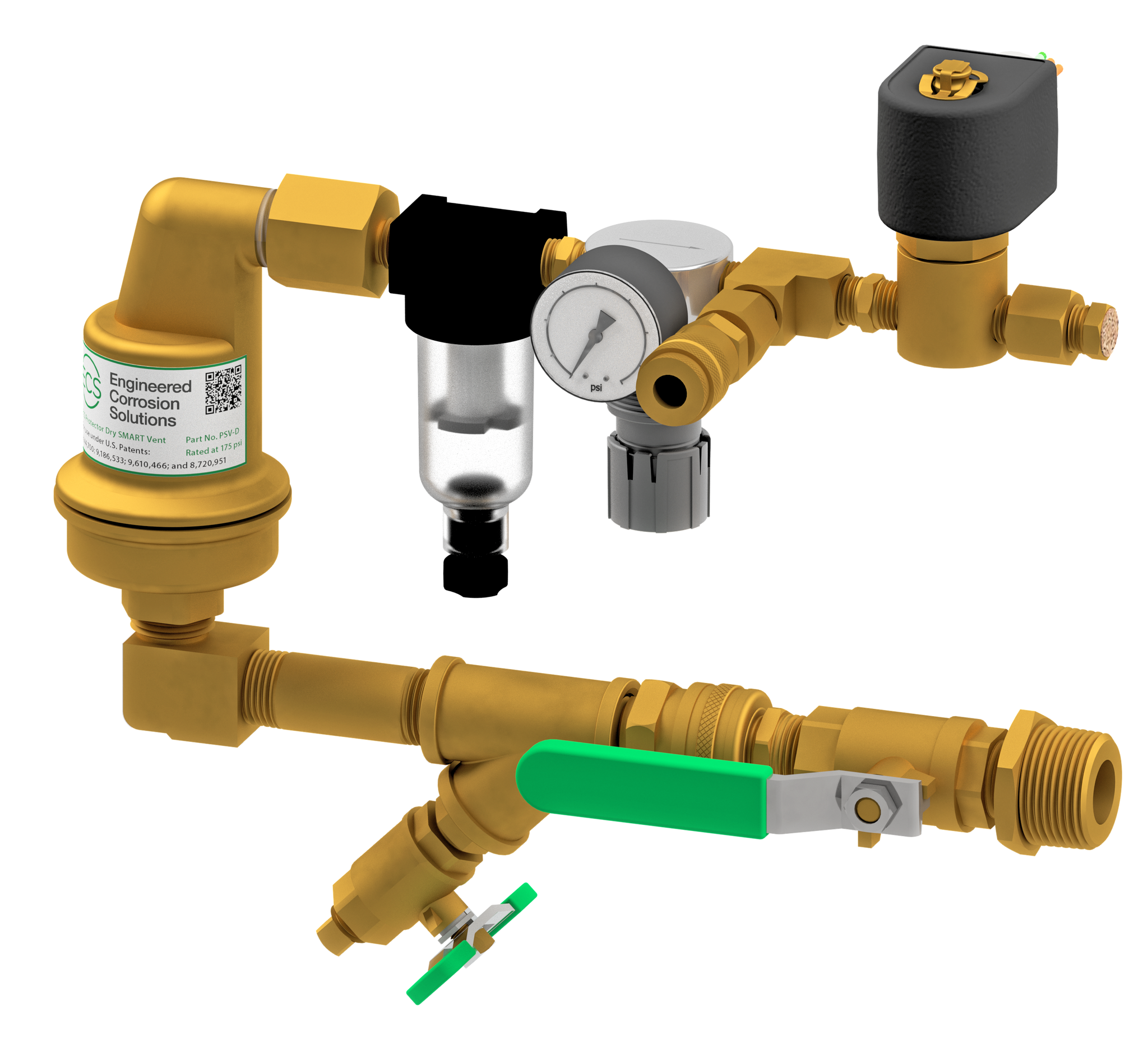

Make it smarter! The PSV-D Dry SMART Vent takes everything that makes the PAV-D great and adds electronic controls. Automatic shutoff halts the inerting process as soon as it’s finished to reduce the runtime of the generator and air compressor – no need to come back and close any valves. A failsafe back-pressure regulator protects your system from excessive depressurization, and a float valve protects the regulator and solenoid in the event the system trips.
For use under U.S. Patents 8,720,591, 9,144,700, 9,186,533 and 9,610,466
- Automatic shutoff via electronic valve (manual ball valve included)
- Failsafe back-pressure regulator
- Nitrogen gas sampling port
- Automatic float shutoff in the event of a system trip
- 120VAC power required
- 1” MNPT connection
- Vent: 13.5” x 4.25” x 7.5” (W x D x H), 8 lbs
- Controller: 9” x 7” x 10” (W x D x H), 12 lbs
Downloads
PSV-D Product Spec Sheet
PSV-D CAD File
